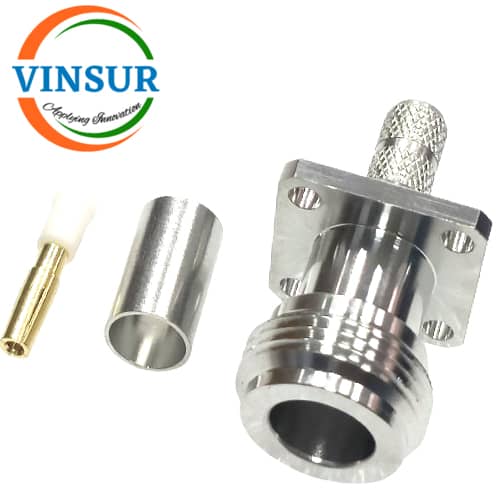

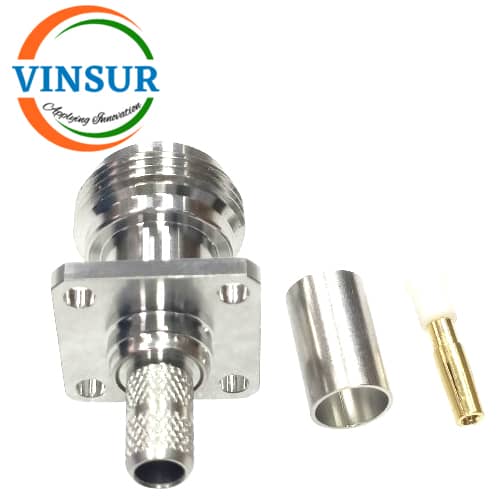

11121416 — RF CONNECTOR – 50 OHMS , N FEMALE , STRAIGHT , 4 HOLE FLANGE , CRIMP TYPE , LMR-240 CABLE
- RF Connectors
- N-type Connectors
- Female Straight
- 4-Hole Flange Mount
- For LMR 240 Cable
- 50Ω
Click Here to get Mechanical Drawing
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | LMR240 |
| Mounting Features | 4-hole flange |
| Max Frequency (GHz) | DC to 6GHz |
| VSWR | ≤1.30 |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | +165 |
