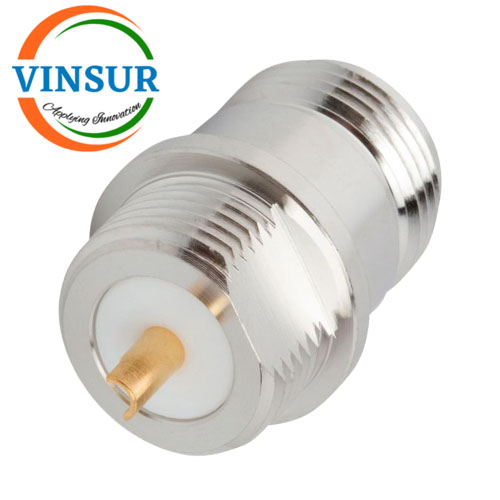

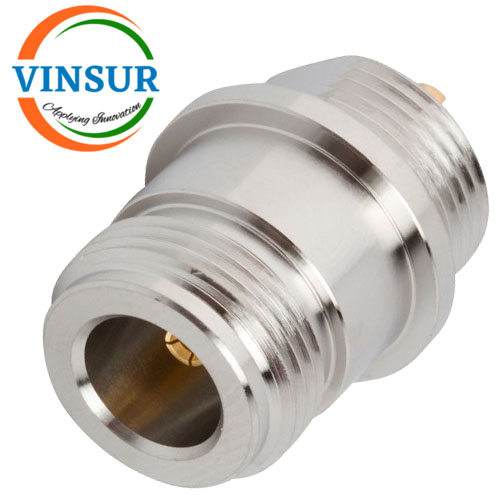

111211I0 — RF CONNECTOR – 50 OHMS , N FEMALE , STRAIGHT , BULKHEAD FRONT MOUNT , SOLDER CUP
- RF Connectors
- N-type Connectors
- N Female
- Bulkhead – Front Mount
- Solder Cup
- 50Ω
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Solder Cup |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Mounting Features | Bulkhead – Front Mount |
| Insulator Material | PTFE |
| Panel Mounting Feature | – |
| Ports | 1 (Single Port) |
| Max Frequency (GHz) | 11 |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -40 |
| Max. Temp. (Celsius) | 85 |
