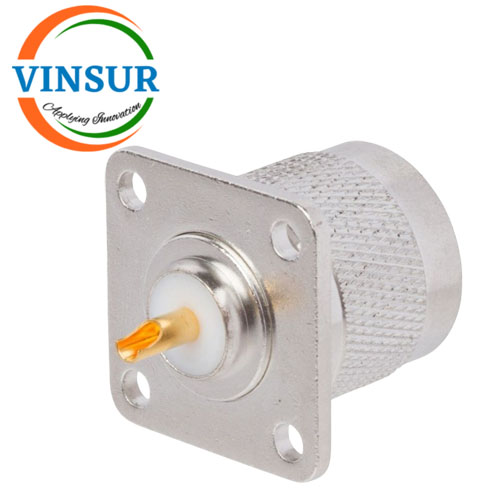

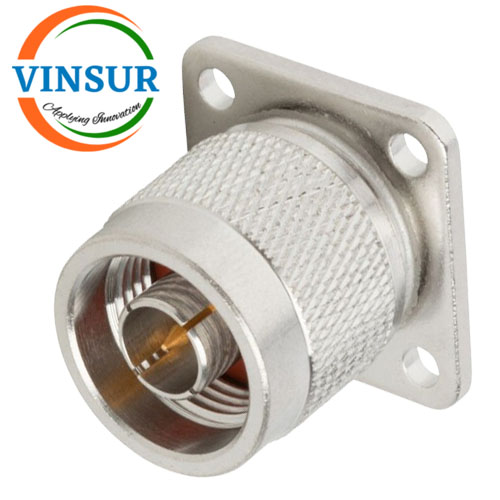

11111BI0 — RF CONNECTOR – 50OHMS , N MALE , STRAIGHT , PANEL MOUNT , SOLDER CUP
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Solder Cup |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Mounting Features | 4-hole Flange |
| Insulator Material | PTFE |
| Coupling Mechanism | Threaded |
| Ports | 1 (Single Port) |
| Max Frequency (GHz) | 11 |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
