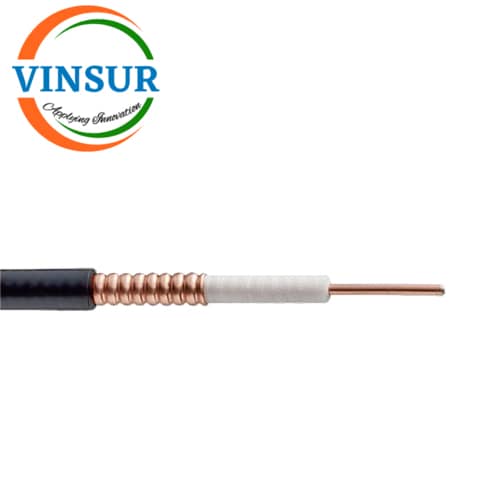

1/4 inch Flexible Feeder Cable (VSW-CB-14F-CC)
- RF Coaxial Cable
- 1-4 inch Cable
- Feeder Cable
Description
| CABLE CONSTRUCTION Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â MATERIAL Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â MM(IN) | ||
| Inner Conductor Material | Copper-Clad Aluminium Wire | 2.4 (0.094) |
| Dielectric Material | Foam Polyethylene | 6 (0.236) |
| Outer Conductor Material | Corrugated copper tube | 7.5 (0.295) |
| Jacket Material | Black Polyethylene | 10 (0.394) |
| ELECTRICAL CHARACTERISTICS AT +20°C | |
| Impedance | 50 ± 1 Ω |
| Maximum Frequency | 15.8GHz |
| Power Handling | 110Watt @18Ghz |
| Velocity | 83% |
| Peak Power Rating | 10.9 kW |
| Capacitance | 80 (24) pF/m (pF/ft) |
| RF Peak Voltage | 1050 Volts |
| Passive Intermodulation PIM | -160 typ. dBc |
| Cable Weight | 0.095 (0.064)kg/m (lb/ft) |
| Minimum Bending Radius, Single Bend | 40 (1.575) mm (in) |
| Minimum Bending Radius, Repeated Bends | 85 (3.346) ) mm (in) |
| Bending Moment | 1.9 (1.4) Nm (lb.ft) |
| Operating Temperature Range | -40°C ~ +70 °C |
