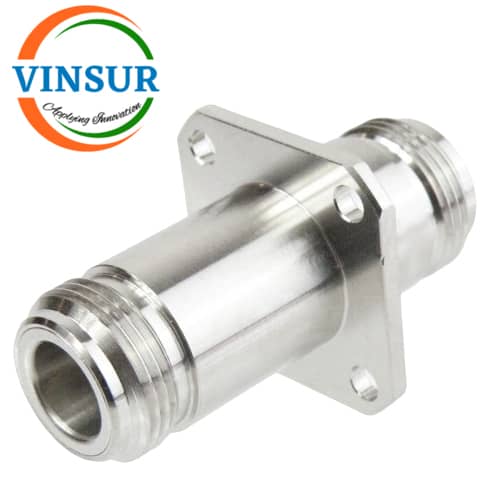

VSW-41120121-ADP — RF ADAPTERS – 50OHMS , N FEMALE , STRAIGHT , TO N FEMALE STARIGHT 4-HOLE FLANGE ADAPTERS
- RF Adapters
- N Adapters
- N to N Adapter
- Female to Female
- 4-hole Flange
- 50Ω
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | N |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Brass |
| Adapter Side 2 Series | N |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Brass |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 11GHz |
| VSWR(Max) | 1.2:1 Max |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +125°C |
