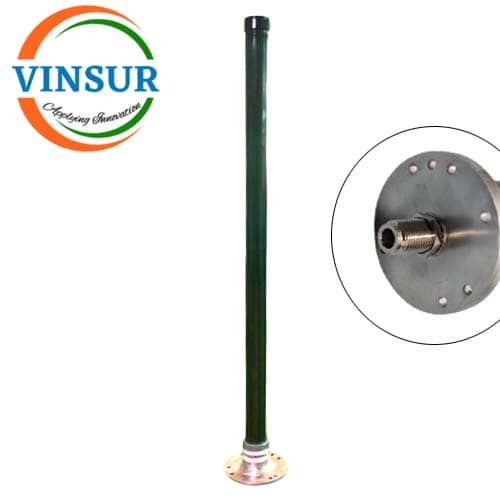

Omni-Directional Antenna(5.8 to 5.9GHz 6-7dBi)
P/N : VSW-OMD-ANT-5.8
- RF Antenna
- Antenna Type : Omni Directional Antenna
- Frequency : 5.8 – 5.9GHz
- Gain : 6-7dBi
Applications:
- Military & Defense Communications
- UAV & Drone Ground Stations
- Mobile Communication & Cellular Boosters
- Industrial IoT & Telemetry
Click here to get Data Sheet
Description
| ELECTRICAL SPECIFICATION | |
| Frequency | 5.8 – 5.9GHz |
| Gain | 6-7dBi |
| VSWR | 1.5:1 Max |
| H Plane BW | 360° |
| E Plane BW | 28°±2 |
| Polarization | Vertical |
| Max. Power Input | 100W |
| Impedance | 50 Ω |
| Lightning Protection | DC Grounded |
| Connector Termination | N(Female) |
| Radom Material | Fiberglass |
| Mounting Hardware | Vehicle Mounting |
| MECHANICAL SPECIFICATION | |
| Dimension (mm) | Ø25 |
| Length (mm) | 690mm |
| Gross Weight | 300g |
| Operating Temperature | 40℃ to+70℃ |
| Rated Wind Velocity | 100km/hr |
