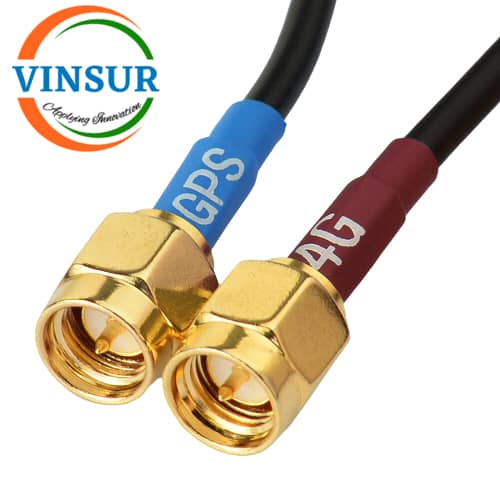

4G LTE GPS LNA 5dBi Bracket Vehicle Mount w/ Cables
P/N : VSW-4LGL-SMA3
- RF Antenna
- Antenna Type : GPS AntennaÂ
- Frequency : 1575.42±1MHz
- Gain : 2dBi
Applications:
- IoT & Smart Cities: Foundation for connected smart city sensors like waste bin monitors, streetlight controls, and environmental tracking stations.
 Click here to get Data Sheet
Description
| ITEM | SPECIFICATIONS | ||
| GPS Antenn a | Dielectric
Anten na |
Centre Frequency | 1575.42±1MHz |
| Band Width | CF±5MHz | ||
| Polarization | RHCP | ||
| Gain | 2dBi | ||
| V.S.W.R | ＜1.5 | ||
| Impedance | 50Ω | ||
| Axial Ratio | 3dB（max） | ||
| LNA | Gain | 28±2dB | |
| Â
Low Noise Amplifier |
Noise Figure | ＜1.5 | ||
| Ex-band Attenuation | 12dB@CF+50MHz/16dB @CF 50MHz | |||
| V.S.W.R | ＜2.0 | |||
| Supply Voltage | 2.2~5V DC | |||
| Current Consumption | 5~15mA | |||
| 4G Antenna | Frequency Range | 698~960MHz/1710~2700MHz | ||
| V.S.W.R | ＜2.0 | |||
| Polarization | Linear | |||
| Gain | 2-5dBi | |||
| Impedance | 50Ω | |||
| Mechanical | Cable | LMR-100 equiv. double-shielded low loss | ||
| Connector | SMA/MCX/FAKRA or others | |||
| Material | ABS | |||
| Mounting Method | Screw | |||
| Environmental | Operating Temperature | -40℃~+85℃ | ||
| Relative Humidity | Up to 95% | |||
| Ingress Protection | IP67 (exclude cable outlet) | |||
| Â | Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
| Â | Compliance | ROHS | ||
