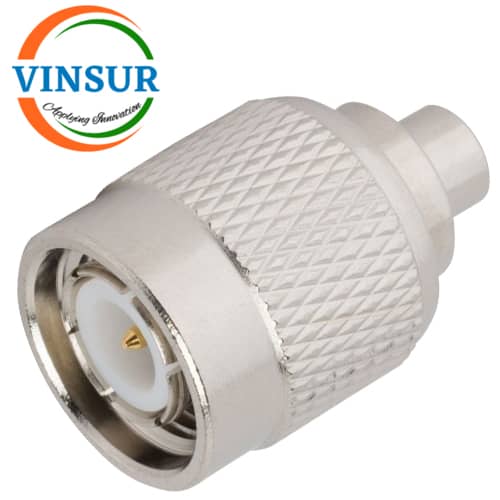

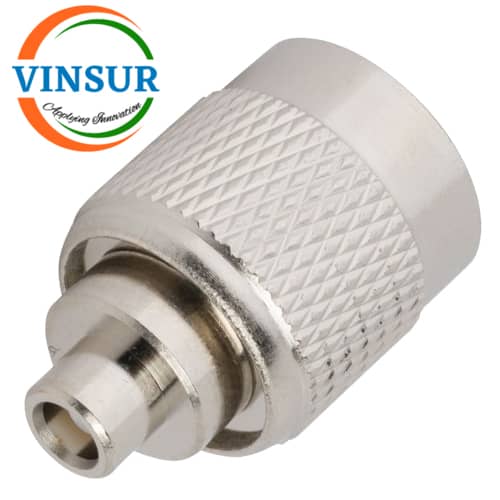

41210621 — RF ADAPTERS – 50 OHMS, MCX FEMALE TO TNC MALE STRAIGHT ADAPTERS
- RF ADAPTER: 50Ω
- MCX Adapter
- MCX to TNC Adapter
Click Here to download the datasheet
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | MCX |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Adapter Side 2 Series | TNC |
| Gender2 | Plug(Male) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 6GHz |
| VSWR | ≤1.3 |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
