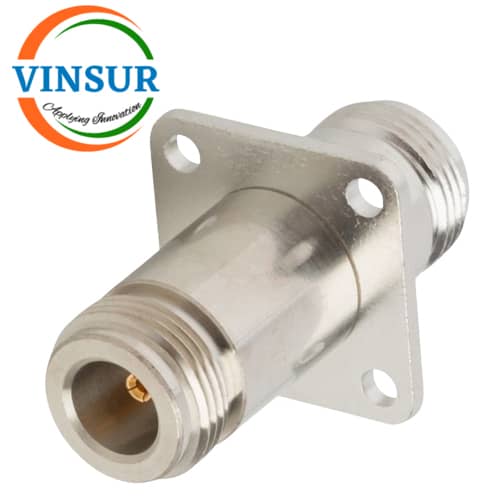

41124121 -- RF ADAPTERR - 50 OHMS, N-TYPE FEMALE TO N-TYPE FEMALE STRAIGHT 4-HOLE FLANGE ADAPTERS - Image 1

Click to enlarge

41124121 — RF ADAPTERR – 50 OHMS, N-TYPE FEMALE TO N-TYPE FEMALE STRAIGHT 4-HOLE FLANGE ADAPTERS

RF Adapters
N Adapters
N to N Adapter
Female to Female
4-hole
50Ω

Click Here to get Datasheet

SKU: 41124121 Category: N-TYPE TO N-TYPE ADAPTER Tags: N to N Adapters, N-type Adapters, RF Adapters

Description
Reviews (0)

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	N
Gender1	Jack(Female)
Orientation	Straight
Body Plating	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Adapter Side 2 Series	N
Gender2	Jack(Female)
Orientation	Straight
Body Plating	Nickel
Body Material	Brass
Contact Finish	Silver
Contact Material	Brass
Mounting Features	–
Impedance (Ohms)	50
Insulator Material	PTFE
Max Frequency (GHz)	DC to 11GHz
VSWR(Max)	1.2:1 Max
Min. Temp. (Celsius)	-40°C
Max. Temp. (Celsius)	+85°C
