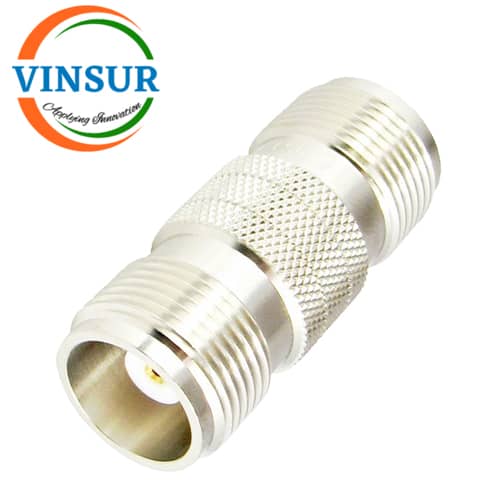

VSW-41R210R210 — RF ADAPTER – 50 OHM , HN , FEMALE , STRAIGHT , TO ,HN,FEMALE,STRAIGHT,ADAPTERS
- RF Adapters
- HN-Type Adapters
- HN-Type to HN-Type Adapter
- Female to Female
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | HN-Type |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Adapter Side 2 Series | HN-Type |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 4GHz |
| VSWR | 1.20 Max |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
