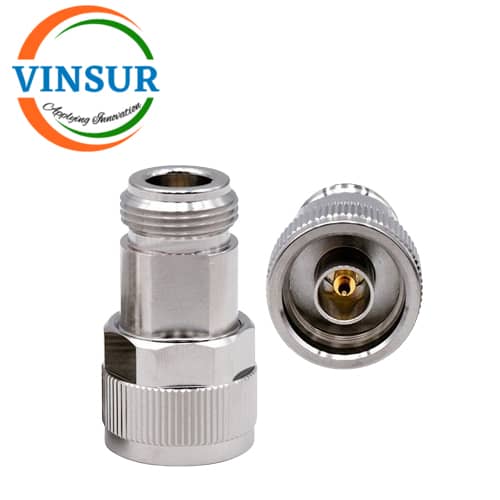

VSW-41110121– RF ADAPTER – 50 OHMS, N MALE TO N FEMALE STRAIGHT ADAPTERS
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | N-type |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Material | Brass |
| Adapter Side 2 Series | N-type |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Features | – |
| Impedance (Ohms) | 50Ω |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 18GHz |
| VSWR(Max) | ≤1.2:1 (DC 0~18GHz) |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
