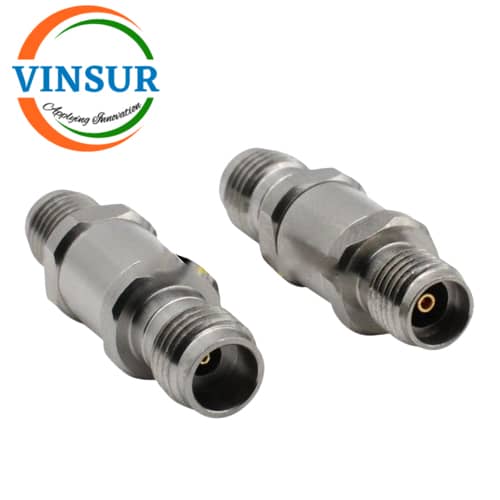

VSW-2.4-FS-3.5-FS-AD — RF ADAPTERS – 50 OHMS 2.4MM FEMALE STRAIGHT TO 3.5 FEMALE STRAIGHT ADAPTER

SKU: VSW-2.4-FS-3.5-FS-AD Category: 2.4mm to 3.5mm Adapters Tags: 2.4mm Adapters, 2.4mm to 3.5mm Adapters, RF Adapters

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	2.4mm
Gender1	Jack(Female)
Orientation	Straight
Adapter Side 2 Series	3.5mm
Gender2	Jack(Female)
Orientation	Straight
Mounting Features	–
Impedance (Ohms)	50
Body Plating	Stainless Steel
Body Material	Brass
Contact Finish	Gold
Contact Material	Beryllium Copper
Insulator Material	PTFE
Max Frequency (GHz)	DC to 26.5 GHz
VSWR(Max)	≤1.2
Min. Temp. (Celsius)	-45°C
Max. Temp. (Celsius)	+165°C
Insulation resistance	≥1000MΩ
Dielectric withstanding voltage:	750v(rms)
