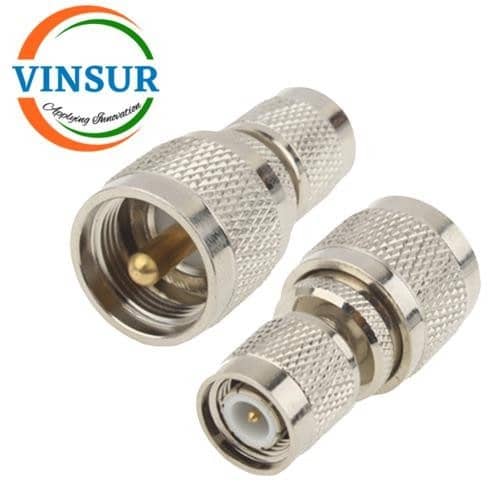

41216C11– RF CONNECTOR – 50OHMS, TNC MALE TO UHF MALE STRAIGHT ADAPTER
- RF ADAPTER: 50Ω
- TNC MALE
- STRAIGHT
- UHF MALE
Click Here to download the datasheet
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | UHF |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Adapter Side 2 Series | TNC |
| Gender2 | Plug(Male) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Mounting Feature | – |
| Max Frequency (GHz) | DC to 2Ghz |
| VSWR | ≤1.2 |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
