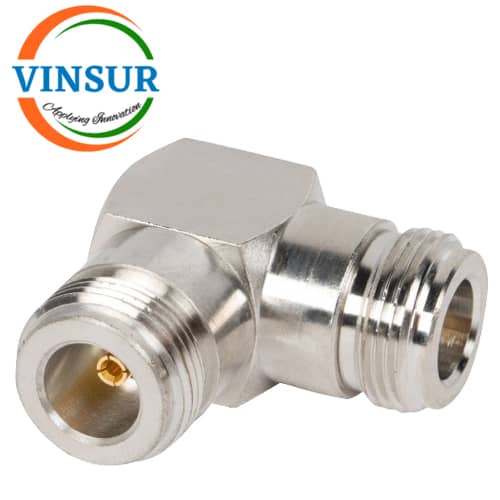

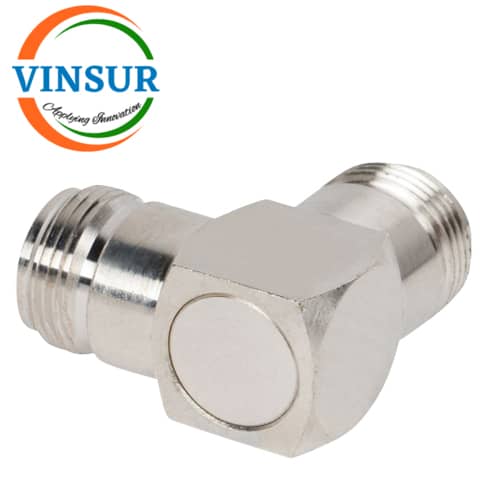

41120122– RF ADAPTER – 50 OHMS, N-TYPE FEMALE TO N-TYPE FEMALE RIGHT ANGLE ADAPTERS
- RF Adapters
- N Adapters
- N to N Adapter
- Female to Female
- Right Angle
- 50Ω
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | N-type |
| Gender1 | Jack(Female) |
| Orientation | Right Angle |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Adapter Side 2 Series | N-type |
| Gender2 | Jack(Female) |
| Orientation | Right Angle |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Features | – |
| Impedance (Ohms) | 50Ω |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 11GHz |
| VSWR(Max) | ≤1.25 |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
