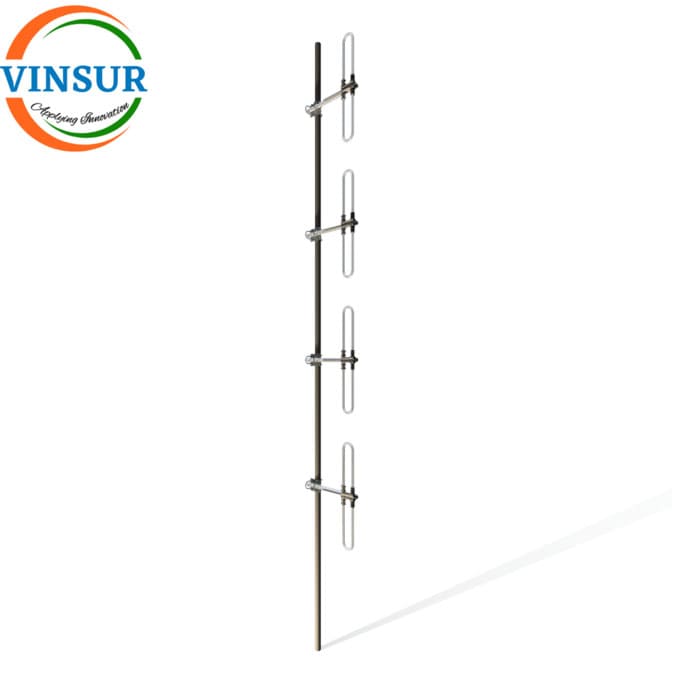

4-Stack VHF Folded Dipole Array Antennas

P/N : VSW-DA-VFA4

Applications:

Description

SPECIFICATION
Frequency	118—136 138—156 146—174 254—268 MHz
Gain	6 (Average) / 8 (Nominal, on Support Pipe) dBi
VSWR	≤ 1,5:1
Polarisation	Vertical
H-Plane	3 dB Beam Width 190°
E-Plane	3 dB Beam Width 16°
Rated Power	150
Impedance	50 Ω
Termination	N-Type Male
Wind velocity	200 Max km/h
Wind Load @ 144 km/h	60 56,2 53,8 43 kg
Material	Aluminium
Mounting	With cross-over plate assembly (support pipe optional)
Antenna Array Length	8,7 7,4 7,0 4,1 m
