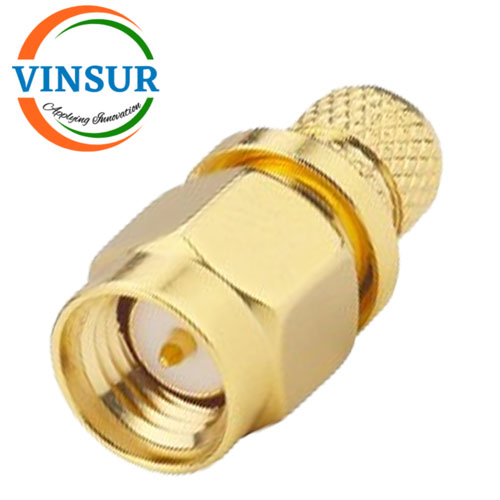

11511016-60 -- RF CONNECTOR - 50 OHMS , SMA MALE , STRAIGHT CRIMP TYPE , LMR-240 CABLE - Image 1

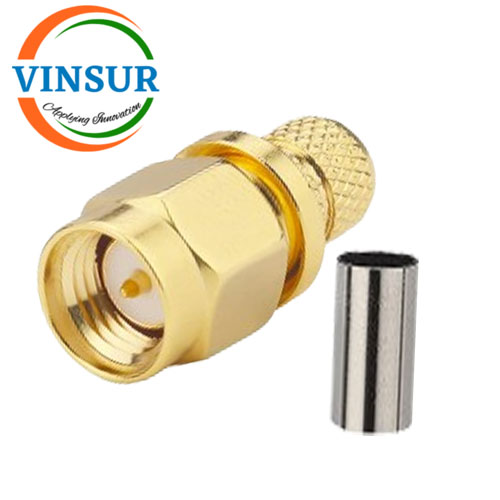

11511016-60 -- RF CONNECTOR - 50 OHMS , SMA MALE , STRAIGHT CRIMP TYPE , LMR-240 CABLE - Image 2

Click to enlarge

11511016-60 -- RF CONNECTOR - 50 OHMS , SMA MALE , STRAIGHT CRIMP TYPE , LMR-240 CABLE

11511016-60 -- RF CONNECTOR - 50 OHMS , SMA MALE , STRAIGHT CRIMP TYPE , LMR-240 CABLE - Image 2

11511016-60 -- RF CONNECTOR - 50 OHMS , SMA MALE , STRAIGHT CRIMP TYPE , LMR-240 CABLE - Image 3

11511016-60 -- RF CONNECTOR - 50 OHMS , SMA MALE , STRAIGHT CRIMP TYPE , LMR-240 CABLE - Image 4

11511016-60 — RF CONNECTOR – 50 OHMS , SMA MALE , STRAIGHT CRIMP TYPE , LMR-240 CABLE

RF Connectors
SMA Connectors
Male Straight
For LMR 240 Cable
50Ω

Click Here to get Datasheet

SKU: 11511016-60 Category: For LMR240 Cable Tags: RF connectors, SMA Connectors

Description
Reviews (0)

Description

CONNECTOR SPECIFICATIONS
Gender	Plug (Male)
Orientation	Straight
Termination Style	Cable – Crimp
Impedance (Ohms)	50
Body Finish	Gold
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Contact Termination Style	Solder
Insulator Material	PTFE
Cable Type	LMR240
Mounting Features	–
Max Frequency (GHz)	DC to 6GHz
VSWR	≤1.2
Polarity	Standard
Min. Temp. (Celsius)	-40°
Max. Temp. (Celsius)	85°
