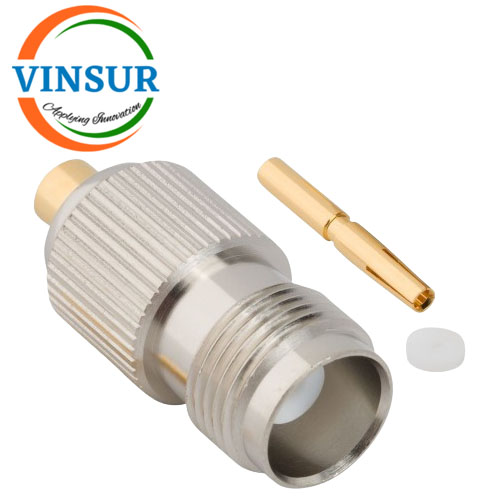

1122101D — RF CONNECTOR – 50 OHMS , TNC FEMALE , STRAIGHT , SOLDER TYPE , RG402 (0.141 INCH) CABLE
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG402(0.141) |
| Mounting Features | – |
| Max Frequency (GHz) | DC to 11GHz |
| VSWR | ≤1.2 |
| Polarity | Standard |
| Min. Temp. (Celsius) |  -40° |
| Max. Temp. (Celsius) | +85° |
